Paget's Disease on Bone Scan

Posted by Dr. Rutuja Kote on Sat, Dec 31, 2022
  • Paget disease is often included in the metabolic bone disease category, although mechanisms causing this disorder are not entirely understood, with genetic and environmental causes proposed.
  • A chronic disease of the elderly.

Clinical Features:

Patients may experience

  • pain,
  • arthritis, and
  • neurological symptoms related to changes in the bone.
  • Congestive heart failure can occur
  • rarely (1%) patients develop osteosarcomas.

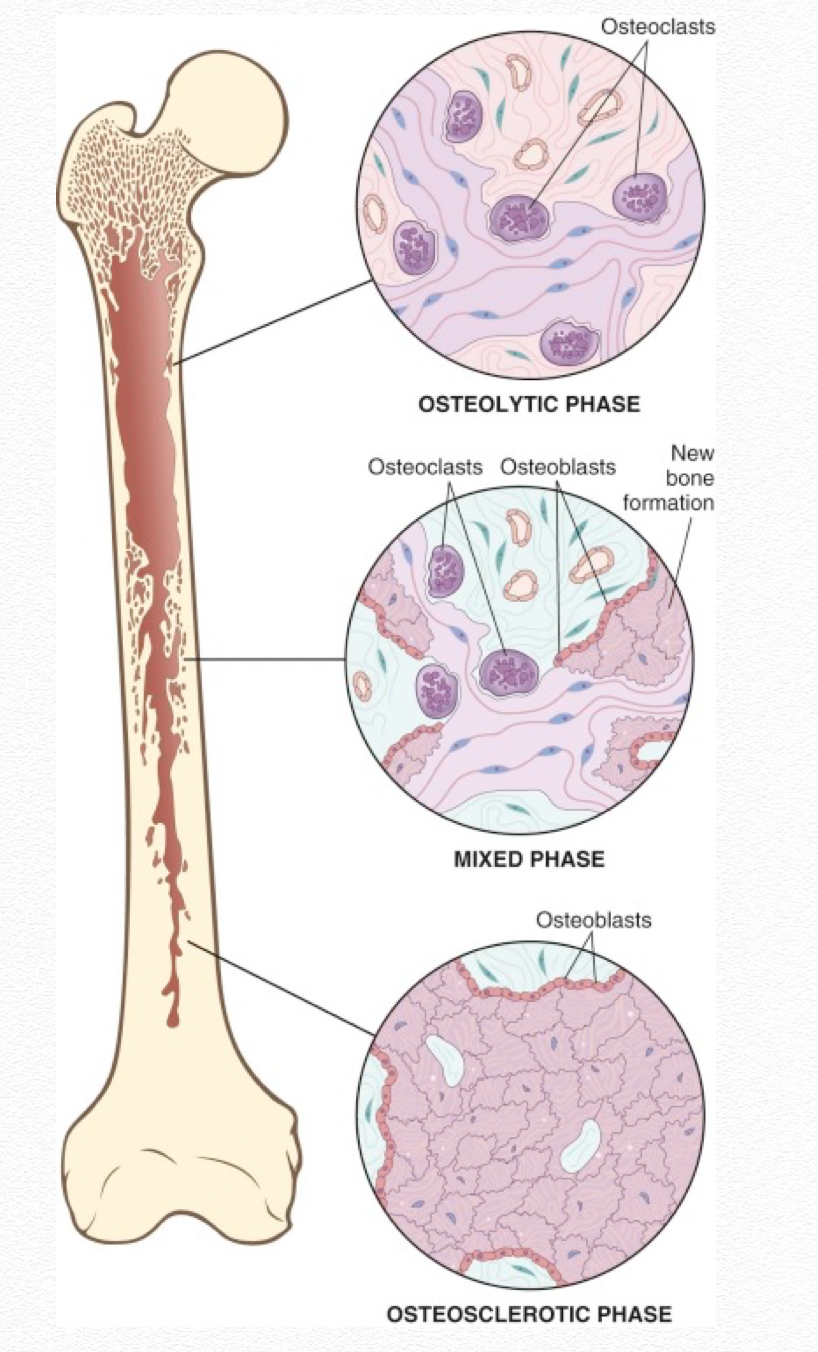

Phases:


The disease has three phases:

  • the early resorptive,
  • mixed middle, and
  • final sclerotic phases.

Investigations:

  • The diagnosis usually can be made by radiographs, which reveal lytic lesions in early cases and coarsened, expanded bones as the disease progresses to the final phase.
  • Although CT and MR can be used to assess complications, bone scan is highly sensitive and useful to evaluate the extent of disease.

Bone scan:

  • Increased uptake is seen in all stages of untreated disease, although sensitivity is lower in the early lytic stage.
  • Activity decreases with effective therapy.
  • In addition, the patterns of Paget disease must be recognized because it may be found incidentally because many patients are asymptomatic and undiagnosed.
  • Bone often appears expanded.
  • When the tibia is involved, bowing is often seen, and in the spine, fractures can happen.
  • The pelvis is the most commonly involved site, followed by the spine, skull, femur, scapula, tibia, and humerus.

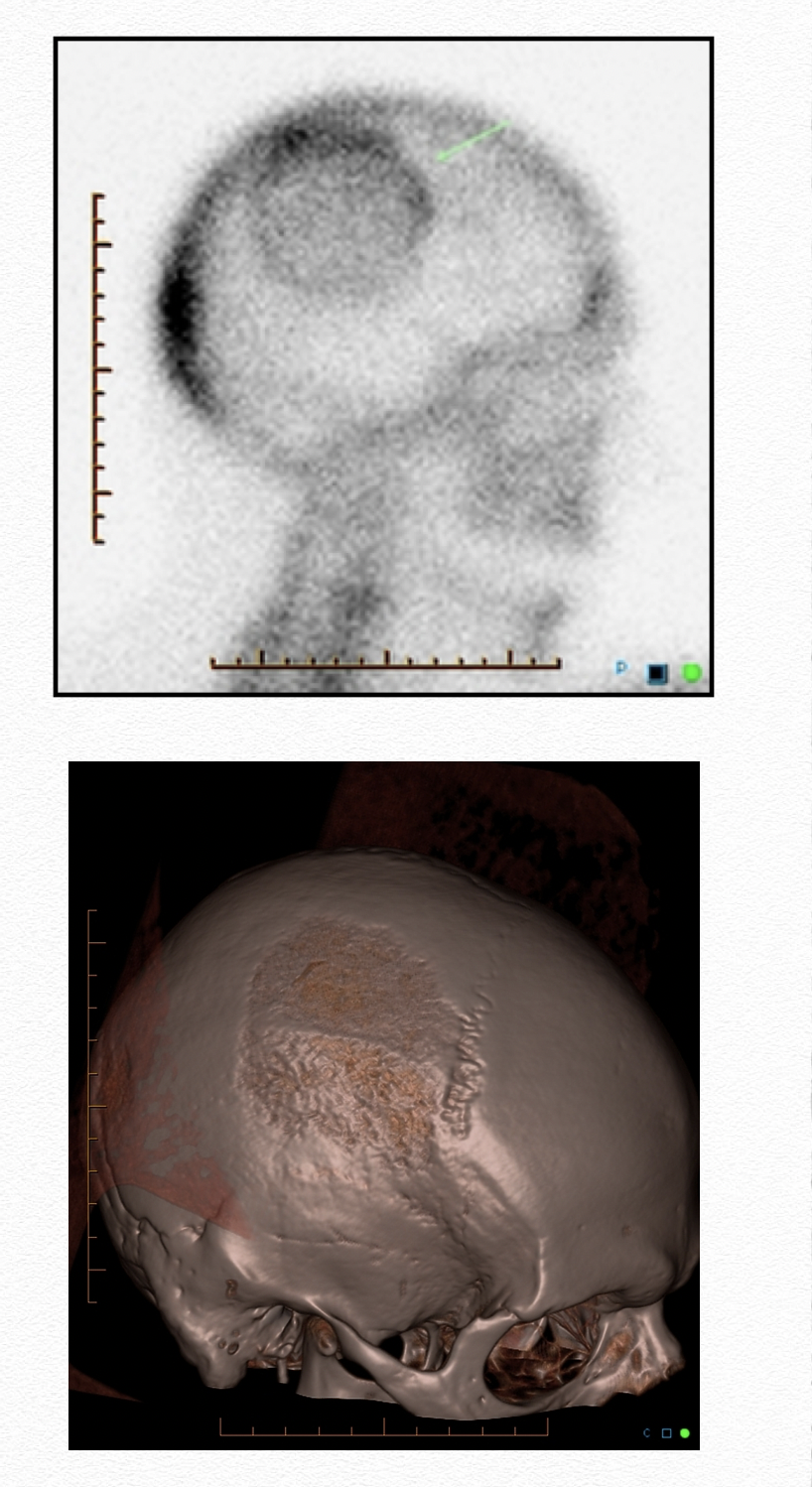

Osteoporosis circumscripta


  • A characteristic rim of increased uptake borders the lesion.
  • Lytic phase/lesion involving skull bones

Mickey Mouse sign


  • Characteristic appearance of vertebral Paget’s disease
  • Abnormal tracer accumulation throughout the vertebra
  • Affecting body and posterior elements
  • Clover/heart/Mickey Mouse sign

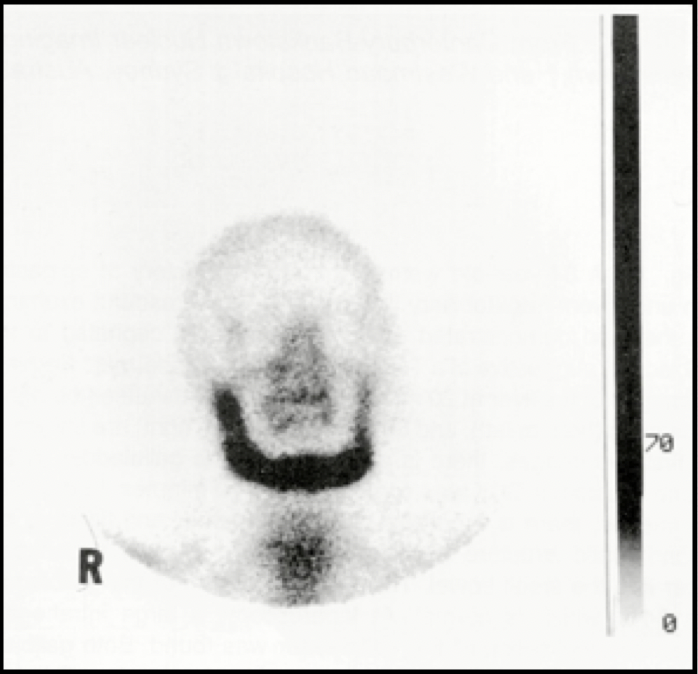

Lincoln sign


  • monostotic Paget’s of mandible

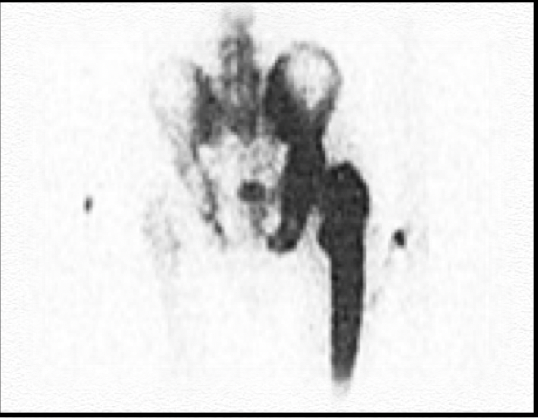

Short pant sign


  • Lower spinal, pelvic and proximal femoral involvement
